With Aidrive Design – increased strength and sensitivity!

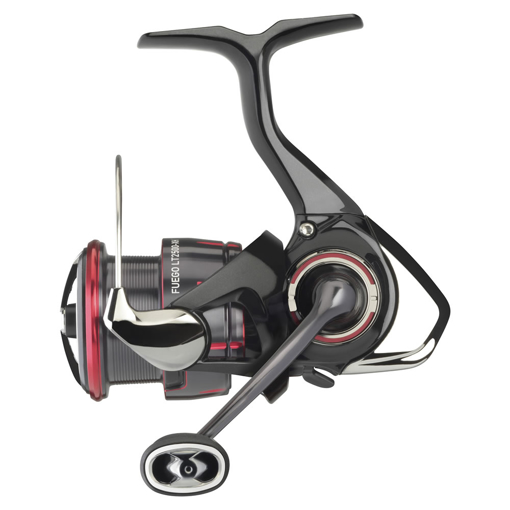

The 23‘ Fuego combines components from the new Airdrive Design with LT elements and the Magsealed stucture. The new Airdrive rotor leads to a weight reduction in the front unit of the reel and offers optimized balance for a decreased starting resistance. The low starting resistance leads to a better control at fishing, a higher sensitivity and an improved lure control. The new Airdrive bail is more lightweight than before, ultimately tough and significantly decreases the threat of tanglings in combination with the new bail arm. The powerful Tough Digigear works silky-smooth and is housed distortion-proof in the reel body made of Zaion V material. The Magsealed design reliably prevents the intrusion of saltwater and dirt particles over the shaft and leads to a long lifespan. The Twistbuster III design at the line roller is perfect for the use of braided lines: the braid doesn‘t get compressed during retrieving and less twist is the result. The new ATD Type-L drag cares for an even and optimized line release under strain without high starting resistance.
Equipment:
Sizes 1000D to 2500 are delivered with I-Shape handle knob. Sizes 3000-C, 3000-CXH, 3000D-C and 4000-CP feature a T-Shape handle knob. Sizes 4000D-CX, 5000-C and 6000D feature a L-size T-Shape handle knob.
- AIRDRIVE Design
- ZAIONV® reel body
- MagSealed® body construction
- 6 ball bearings
- ZAION V® AIRDRIVE ROTOR®
- TOUGH DIGIGEAR®
- Cross Wrap® system
- Cold forged ABS® aluminum longcast spool
- AIRDRIVE BAIL
- Twist Buster® III line roller
Kat.č. Art.No. Art.Nr. | Model Modell | m/mm | Brzdná síla Max Drag Bremskr. | Návin Retrieval Einzug | Převod Ratio Übersetzung | Hmotnost Weight Gewicht | Ložiska Bearings Kugellager |
---|
10333-100 | 1000D | 150m / 0.20mm | 5 kg | 64 cm | 5.2:1 | 175 g | 6 |
10333-201 | 2000S-XH | 150m / 0.14mm | 5 kg | 81 cm | 6.2:1 | 180 g | 6 |
10333-250 | 2500 | 150m / 0.20mm | 10 kg | 75 cm | 5.3:1 | 195 g | 6 |
10223-251 | 2500-XH | 150m / 0.20mm | 10 kg | 87 cm | 6.2:1 | 195 g | 6 |
10333-300 | 3000-C | 150m / 0.23mm | 10 kg | 80 cm | 5.3:1 | 205 g | 6 |
10333-301 | 3000-CXH | 150m / 0.23mm | 10 kg | 93 cm | 6.2:1 | 205 g | 6 |
10333-305 | 3000D-C | 150m / 0.33mm | 10 kg | 80 cm | 5.3:1 | 205 g | 6 |
10333-401 | 4000-CXH | 150m / 0.37mm | 12 kg | 99 cm | 6.2:1 | 230 g | 6 |
10333-404 | 4000-CP | 150m / 0.28mm | 12 kg | 75 cm | 4.7:1 | 230 g | 6 |
10333-500 | 5000-C | 150m / 0.37mm | 12 kg | 82 cm | 5.2:1 | 240 g | 6 |
10333-600 | 6000D | 150m / 0.43mm | 12 kg | 92 cm | 5.1:1 | 315 g | 6 |
